AirSep AS-B Oxygen Generator (21.2-25.9 LPM) 45-55 cuft per hour

AirSep AS-B Oxygen Generators produce 45 - 55 cubic feet of oxygen per hour at up to 95.5% concentration(21.2-25.9 LPM).

Requiring a connection to electricity and a source of compressed air, these reliable machines have low operating costs, and being easy to install and maintain with automatic operation makes this oxygen generator an ideal solution for use with many different applications.

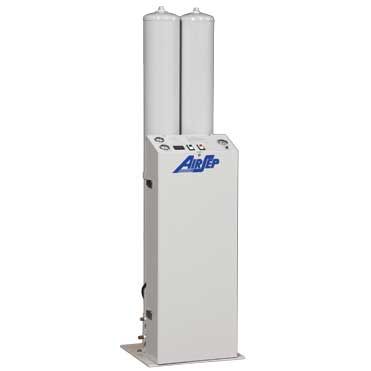

AirSep AS-B Oxygen Generator

AirSep AS-B Oxygen Generators produce 45 - 55 cubic feet of oxygen per hour at up to 95.5% concentration

Features

Produces oxygen from an independent compressed air source

Microprocessor controlled

Low operating cost

Automatic and unattended operation

Easy to install and maintain

Typical applications include

Medical: Hospital systems

Manufacturing: Cutting/Brazing/Soldering/Thermal/Chemical Oxidation

Enviromental: Ozone (Generator) feed gas, environmental remeditation, waste water treatment

Glass Industry: Glass work, manufacturing, blowing

Also Fish Farming

Product Specifications for the AirSep AS-B Oxygen Generators

Product Flow: 45 - 55 SCFH (1.18 - 1.45 Nm3/hr)(21.2-25.9 LPM)

Product Pressure: 45-55 psig (310-379 kPa)1

Product Concentration (nominal): 93%

Product Dew Point: -100°F (-73°C)

Dimensions (W x D x H) (Nominal): 17 x 15 x 58 in (43 x 38 x 147 cm)

Weight: 246 lb (112 kg)

Physical Connections

Compressed Air Inlet: ¼” FNPT

Product Gas Outlet: ¼” FNPT

Ambient Operating Conditions: Locate the oxygen generator in a well-ventilated area that is protected from weather elements and remains between 40°F (4°C) and 104°F (40°C)

Feed Air Requirements:

Clean and Dry “Plant Air” (Class 5.6.5 per ISO 8573.1)
Pressure: 90 psig (621 kPa) minimum
Temperature: 122°F (50°C) maximum

Control Power Requirements (Single Phase): 120 V ~ ±10%, 50/60 Hz, 1.0 A or 220 V ~ ±10%, 50/60 Hz, 0.5 A

60 Gallon Oxygen Receiver Characteristics

Dimensions (Dia. x H): 26 x 52 in (65 x 131 cm)

Weight: 159 lb (72 kg)

AirSep AS-B Mini Pack

The AS-B Mini has a smaller footprint but will still produce up to 95.5% oxygen concentration, having been designed for applications with a fixed flow and pressure, this smaller sized generator offers a quick start up when connected to a compressed air source and electricity supply.

Features

Produces oxygen from an independent compressed air source

Microprocessor controlled

Low operating cost

Automatic and unattended operation

Easy to install and maintain

Small footprint

Typical Applications Include

Environmental: Ozone (Generator) Feed Gas and Environmetal Remediation

Product Specifications for the AirSep AS-B Mini Pack

Product Flow: 45 - 55 SCFH (1.18 - 1.45 Nm3/hr)1

Product Pressure: 45-55 psig (310-379 kPa)1

Product Concentration (nominal): 93%

Product Dew Point: -100°F (-73°C)

Dimensions (W x D x H): 27 x 15 x 68 in (69 x 38 x 173 cm)

Weight: 363 lb (165 kg) [Generator and receiver]

Physical Connections

Compressed Air Inlet: ¼” FNPT
Product Gas Outlet: ¼” FNPT

Ambient Operating Conditions: Locate the oxygen generator in a well-ventilated area that is protected from weather elements and remains between 40°F (4°C) and 104°F (40°C)

Feed Air Requirements:

Clean and Dry “Plant Air” (Class 5.6.5 per ISO 8573.1)
Pressure: 90 psig (621 kPa) minimum
Temperature: 122°F (50°C) maximum

Control Power Requirements (Single Phase): 120 V ~ ±10%, 50/60 Hz, 1.0 A or 220 V ~ ±10%, 50/60 Hz, 0.5 A

Warranty: 1 year parts and labour on both the AS-B and AS-B Mini Pack

	AS-B mini cut sheet
	AS-B cut sheet

Delivery details: This is a special delivery item, availability is 4-6 weeks from receipt of order

Please note this is a special order item and cannot be canceled when any order is placed.
