AirSep AS-Z Oxygen Generator | 5,000-5,500 SCFH, 95.5% Oxygen

AirSep AS-Z Oxygen Generators produce 5,000 - 5,500 cubic feet of oxygen per hour at up to 95.5% concentration. Requiring a connection to electricity and a source of compressed air, these reliable machines have low operating costs, and being easy to install and maintain with automatic operation makes this oxygen generator an ideal solution for use with many different applications.

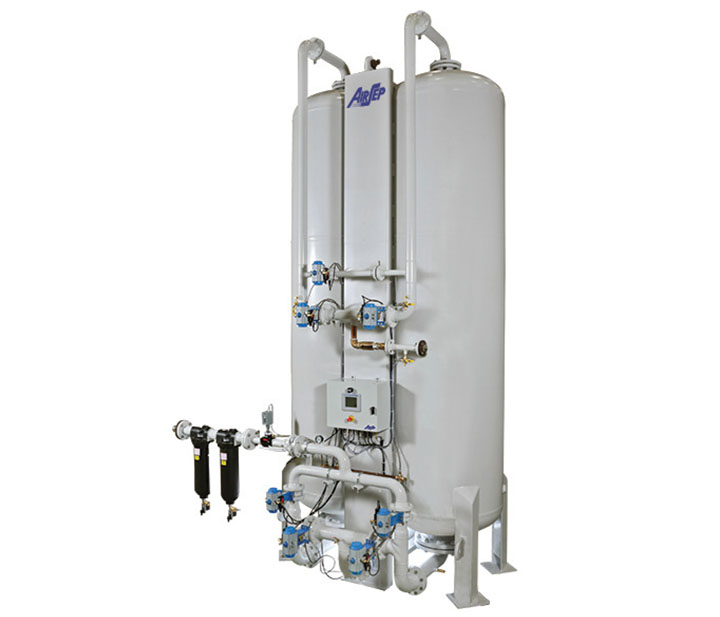

AirSep AS-Z Oxygen Generator

AirSep AS-Z Oxygen Generators produce 5,000 - 5,500 cubic feet of oxygen per hour at up to 95.5% concentration

Features

Produces oxygen from an independent compressed air source

Microprocessor controlled

Low operating cost

Automatic and unattended operation

Easy to install and maintain

HMI NEMA 4 Touchscreen control panel with integrated oxygen concentration monitor

Typical applications include

Medical: Hospital systems

Manufacturing: Cutting/Brazing/Soldering/Thermal/Chemical Oxidation

Enviromental: Ozone (Generator) feed gas, environmental remeditation, waste water treatment

Glass Industry: Glass work, manufacturing, blowing

Also Fish Farming

Product Specifications for the AirSep AS-Z Oxygen Generator

Product Flow: 5,000 - 5,500 SCFH (131.44 - 144.59 Nm3/hr)1

Product Pressure: 45-65 psig (310-448 kPa)1

Product Concentration (nominal): 93%

Product Dew Point: -100°F (-73°C)

Dimensions (W x D x H) (Nominal): 114 x 88 x 197 in (290 x 224 x 500 cm)

Weight: 20,002 lb (9,073 kg)

Physical Connections

Compressed Air Inlet: 3” 150# ANSI Flange

Product Gas Outlet: 1½” 150# ANSI Flange

Ambient Operating Conditions: Locate the oxygen generator in a well-ventilated area that is protected from weather elements and remains between 40°F (4°C) and 104°F (40°C)

Feed Air Requirements:

Clean and Dry “Plant Air” (Class 5.6.5 per ISO 8573.1)
Pressure: 90 psig (621 kPa) minimum
Temperature: 122°F (50°C) maximum

Control Power Requirements (Single Phase): 120 V ~ ±10%, 50/60 Hz, 3.0 A or 220 V ~ ±10%, 50/60 Hz, 1.0 A

1,550 Gallon Oxygen Receiver Characteristics

Dimensions (Dia. x H): 62 x 180 in (157 x 457 cm)

Weight: 2,500 lb (1,134 kg)

Warranty: 1 year parts and labour

AS-Z cut sheet

Delivery details: This is a special delivery item, availability is 4-6 weeks from receipt of order

	Item	Value
	Flow	5,000 - 5,500 SCFH (131.44 - 144.59 Nm3/hr)1
	Weight	20,002 lb (9,073 kg)
	Dimensions	114 x 88 x 197 in (290 x 224 x 500 cm)
	Power Consumption	120 V ~ ±10%, 50/60 Hz, 3.0 A or 220 V ~ ±10%, 50/60 Hz, 1.0 A
	Outlet Pressure	45-65 psig (310-448 kPa)1
	Mains Voltage	120 V ~ ±10%, 50/60 Hz, 3.0 A or 220 V ~ ±10%, 50/60 Hz, 1.0 A
	Warranty	An unprotected or inadequately ventilated environment, or improper control power may cause damage to the oxygen generator not covered under warranty.
