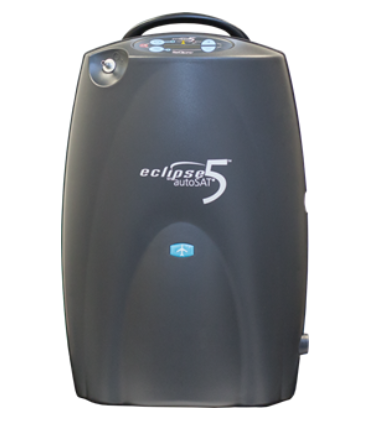

Sequal Eclipse 5 (Rental)

 FOR MORE INFORMATION, GIVE ONE OF OUR SPECIALIST CUSTOMER SERVICE ADVISORS A CALL ON 0345 100 0084

The Most Robust and Reliable POC on the Market. The new generation of SeQual Eclipse raises the bar for POC performance. The Eclipse 5 features the same benefits that you love about the Eclipse 3, but with next generation internal components that enhance the reliability of the POC. The Eclipse 5 goes where you go, with improved DC power operation that allows for full functionality of the Eclipse 5 when running from DC outlets.  All continuous flow settings, up to 3 LPM, as well as all pulse flow settings, including the largest super setting of 192 mL, are available while operation on DC power. The Eclipse 5 battery will also charge while the unit is connected to DC power, which eliminates any anxiety of failed batteries on long road trips.

The Perfect O Solution for Low-Mobility Patients: If you’re currently delivering cylinders and have high delivery costs, look no further because Eclipse 5 is the ultimate solution for your patients and your business. Save time and money because cylinder deliveries are eliminated. Most patients not only require oxygen at home, but also on the go – SeQual Eclipse acts as both a stationary and portable unit to meet these needs.

Some patients have low and limited mobility, but the SeQual Eclipse gives them peace of mind and the freedom to enjoy life at a moment’s notice. Eclipse is lightweight and easy to maneuver by use of the universal cart with telescoping handle. This reliable unit keeps up with the various activities of daily living while providing the individualized oxygen prescription. The SeQual Eclipse is the best solution for patients with higher clinical oxygen needs, but also for those whose ambulatory activities are limited to moving from the house to the car so they can visit the doctor or friends and family.

SPECIFICATIONS

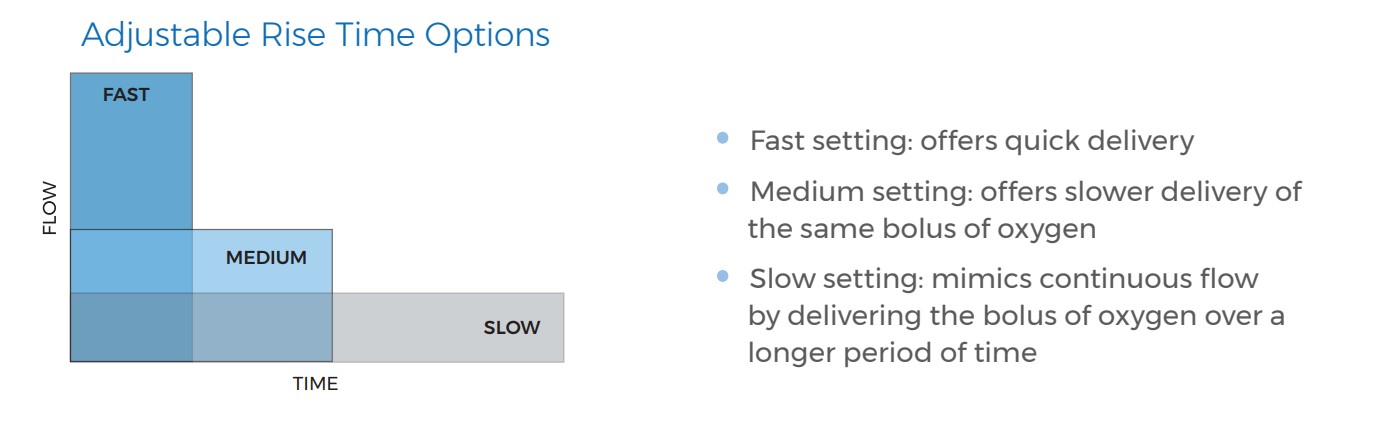

Adjustable Rise Time

Adjustable rise time allows for longer or shorter oxygen delivery time, providing the same bolus of oxygen volume and accommodating a greater patient population.

The Eclipse 5 offers three different settings to provide increased patient comfort and address the oxygen needs of different disease states.

UltraSense® with Adjustable Pulse Sensitivity

UltraSense is CAIRE’s proprietary technology for sensitive breath detection—helping to ensure patients receive oxygen when needed.

• Adjustable Pulse Sensitivity allows pulse mode to be used by a wider variety of patients, including patients with weak inspiratory effort who can use a more sensitive setting for more comfortable use

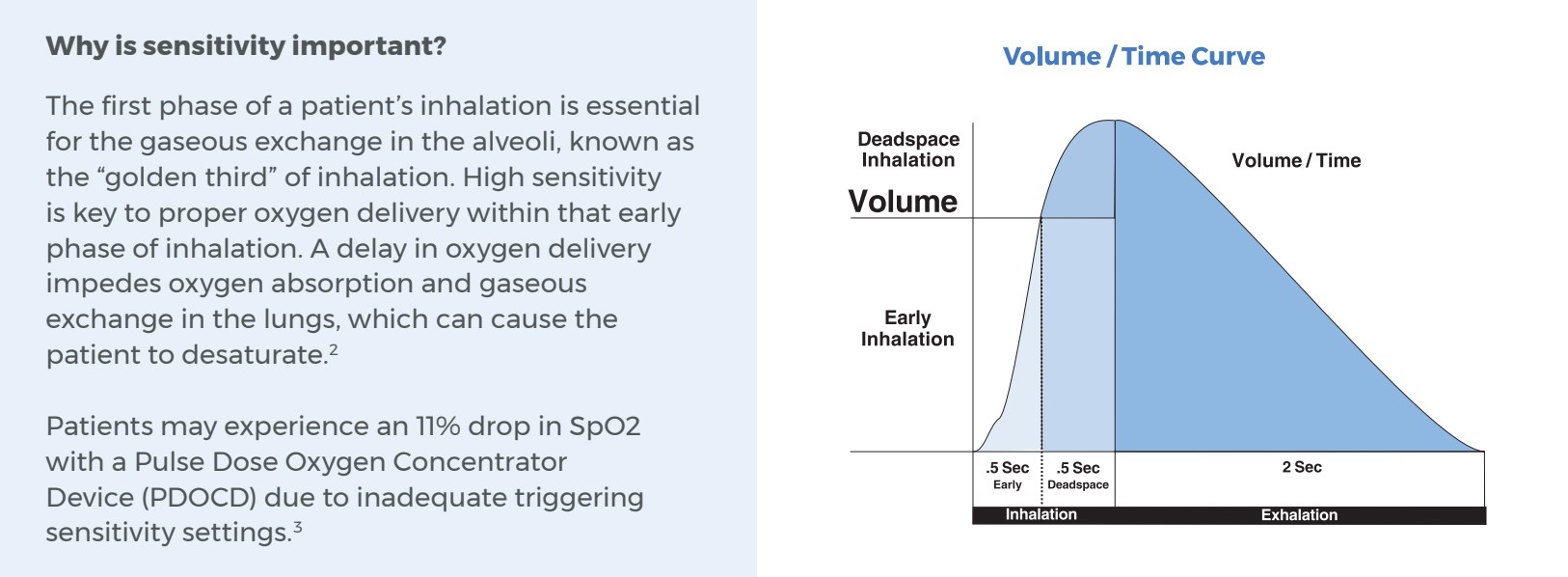

• Provides quick and reliable oxygen delivery in the “golden third” of inhalation with the most advanced trigger sensitivity on the market today

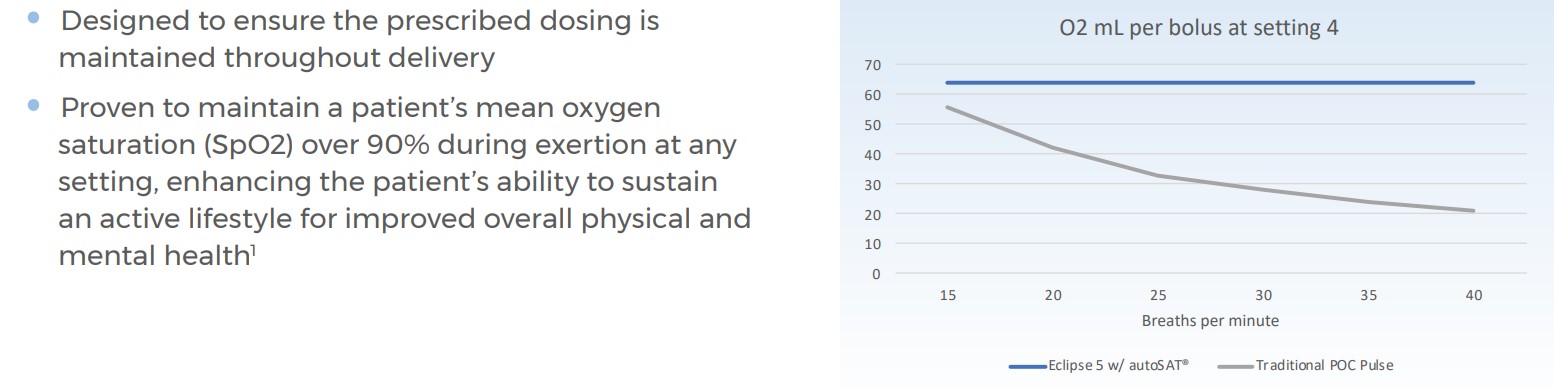

autoSAT®: Clinically Proven Oxygen Delivery

Most portable oxygen concentrators (POCs) deliver a decreased bolus size as the patient’s breath rate increases.

To compensate with those devices, the user would need to manually increase the setting on the POC to ensure they receive enough oxygen during activity.

The Eclipse 5’s unique design includes CAIRE’s proprietary autoSAT technology, which maintains a consistent pulse dose volume for every breath as the patient’s respiratory rate changes

Size                                                                              H x W x D  19.3 x 12.3 x 7.1 (inches), 49.0 x 31.2 x 18.0 (cm)
Weight                                                                          Eclipse 15 lbs., Battery 3.4 lbs.
Continuous Flow Settings (measured in LPM)            0.5 to 3.0 LPM (0.5 liter increments)
Pulse Dose Settings (measured in mL)                       16-96mL, 128mL, 160mL, 192mL
O2  concentration                                                         90%+5.5%/-3% @ sea level
O2  output pressure (nominal)                                      5.0 psig (34.5 kPa)
Sound level                                                                   48 dBA at 3.0 LPM Continuous Flow Mode; 40 dBA at 3.0 Pulse setting

Power                                                                           AC Power  100-240 VAC, 50-60 Hz, DC Power 12 V nominal

Battery                                                                         98.9 W-Hr battery pack containing 7.92 gm of lithium content
Power Consumption                                                   52 watts at 1.0 LPM CF, 145 watts at 3.0 LPM, 45 watts at 1.0 pulse dose, 95 watts at 6.0 pulse dose
Battery Duration                                                          2 hours (at 2LPM continuous flow); 5.4 hours (pulse at a 2 setting)
Nominal Battery recharge time                                   1.8 to 5.0 hrs recharge time to achieve 80% capacity (dependent upon the flow)
Backup Alarm power                                                   9-volt battery
O2  concentration indicator                                        Green Light=Normal, Yellow=Caution <85%, Red Flashing=Warning <70%
Operating temperature                                               50ºF to 104ºF (10 ºC to 40ºC) at 82.4º F (28ºC) dew point, non-condensing
Trigger Sensitivity                                                       Adjustable between -0.135 cm H20 to -0.37 cm H20 (negative pressure)
Altitude Operating range                                            0-13,123 (0-4,000 meters)
Alarms/Alerts                                                             Loss of power, Low Battery, Low Therapeutic O2  Output, O2 flow outside normal limits No Inspiration detected in Pulse Dose Mode, Unit Malfunction

CALL 0345 100 0084 FOR PRICES

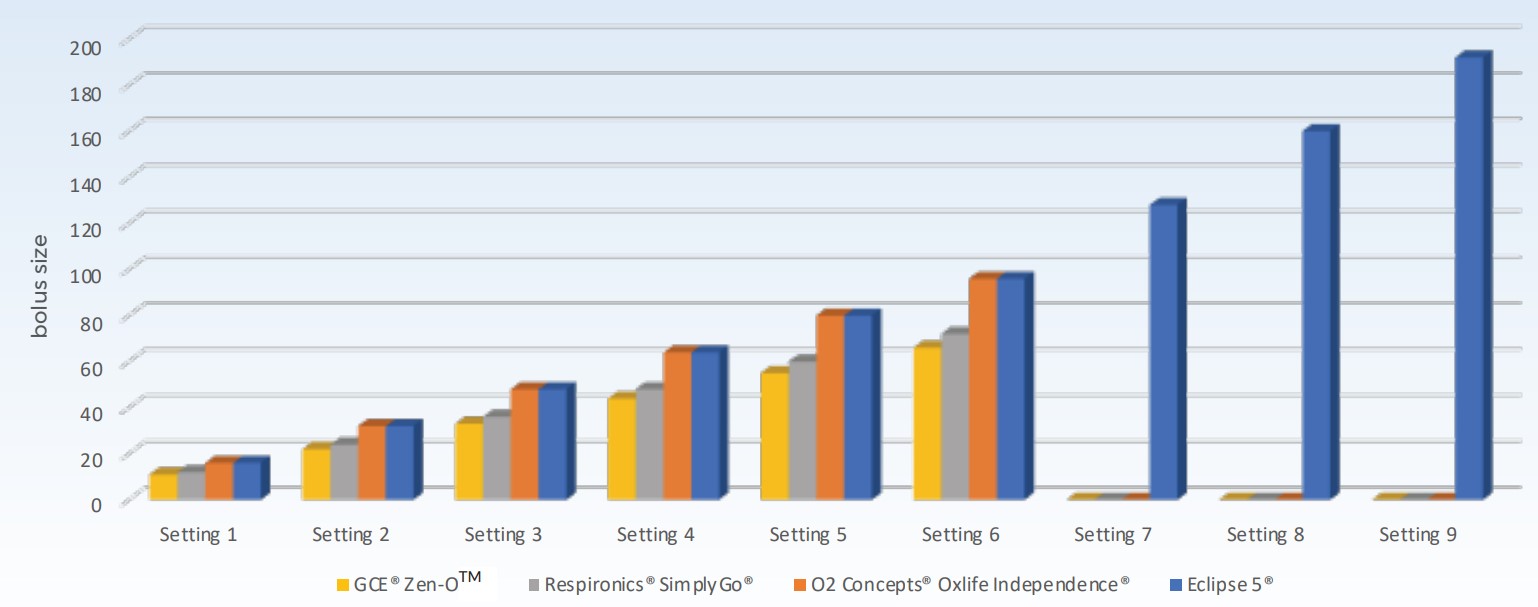

The Eclipse 5 delivers the largest oxygen bolus compared to competitive devices.

Setting up your Eclipse 5 Portable Oxygen Concentrator

Sequal Eclipse 5 Clinical Features and Applications

BROCHURES

Sequal Eclipse 5 Brochure in English click HERE

Sequal Eclipse 5 Brochure in Spanish click HERE

Sequal Eclipse 5 Accessory Brochure HERE

1. A Comparative Study of 3 Portable Oxygen Concentrators During a 6-Minute Walk Test in Patients With Chronic Lung Disease Respir Care. LeBlanc C, Lavallee L, King J, TaylorSussex R, Woolnough A and McKim D. 2013;58(10):1598 –1605.

2. Effect of the Anatomic Reservoir on Low-Flow Oxygen Delivery Via Nasal Cannula: Constant Flow Versus Pulse Flow With Portable Oxygen Concentrator. Steven Zhou and Robert Chatburn. Respir Care 2014;59(8):1199 –1209.

3. Nocturnal Oxygenation Using a Pulsed-Dose Oxygen-Conserving Device Compared to Continuous Flow. Chatburn R, Lewarski J and McCoy R. Respir Care 2006;51(3):252–256.

Precision Medical® EasyPulse is a registered trademark of Precision Medical, Inc., a Pennsylvania corporation. Inogen One® G5/G3TM is a registered trademark of Inogen. O2 Concepts® Oxlife Freedom® are registered trademarks of O2 Concepts. SimplyGo® Mini is a registered trademark of Koninklijke Philips N.V. DeVilbiss®, and iGO®2 are registered trademarks of DeVilbiss Healthcare. Data collected from product user manuals published on company websites, December 2020. The product comparison is designed to demonstrate the technical advancements of the most common commercially available portable oxygen concentrators.
