Product Description

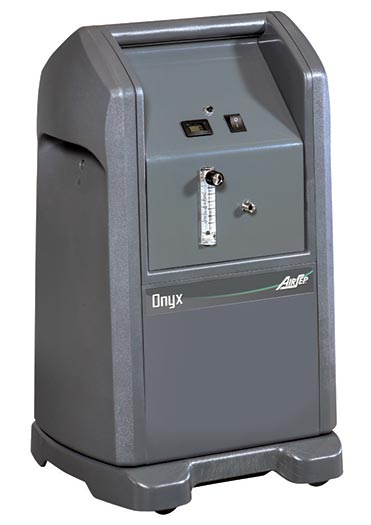

The Airsep Onyx Ultra is an Oxygen concentrator for Industrial applications requiring higher pressures such as ozone feed gas production, glass working, jewellery manufacture and cutting/brazing uses. The Ultra is a heavy duty commercial concentrator with long life components.
Features - Variable Flow rate up to 10 l/min (21 SCFH)
|
- Self contained (internal air compressor)
|
- Transportable roller based design
|
|
- Easy installation and maintainence
- High-impact polystyrene enclosure
Technical Specifications |
|
|
|
|
Built to meet the requirements of NRTL: | UL3101.1, CSA, CE |
Dimension (H xWxD): | 72 x 40 x 37 cm |
Weight: | 25kg |
Electrical Requirements: | 220V, 50/60 Hz 2.8 Amp |
Ambient Operation Conditions | Locate the machine in a well ventilated area that is protected from weather elements and remains between 4 - 44 Degrees Celsius. |
Flow rate: Outlet Pressure: | 1 to 10 l/min 1 – 20 psi |
O2 Concentration: | 1-10 l/min 93% ± 3% |
Warranty: Please note this is a special order product and cannot be canceled when any order is placed. | 12 months Parts & Labour (Ex Works) |
