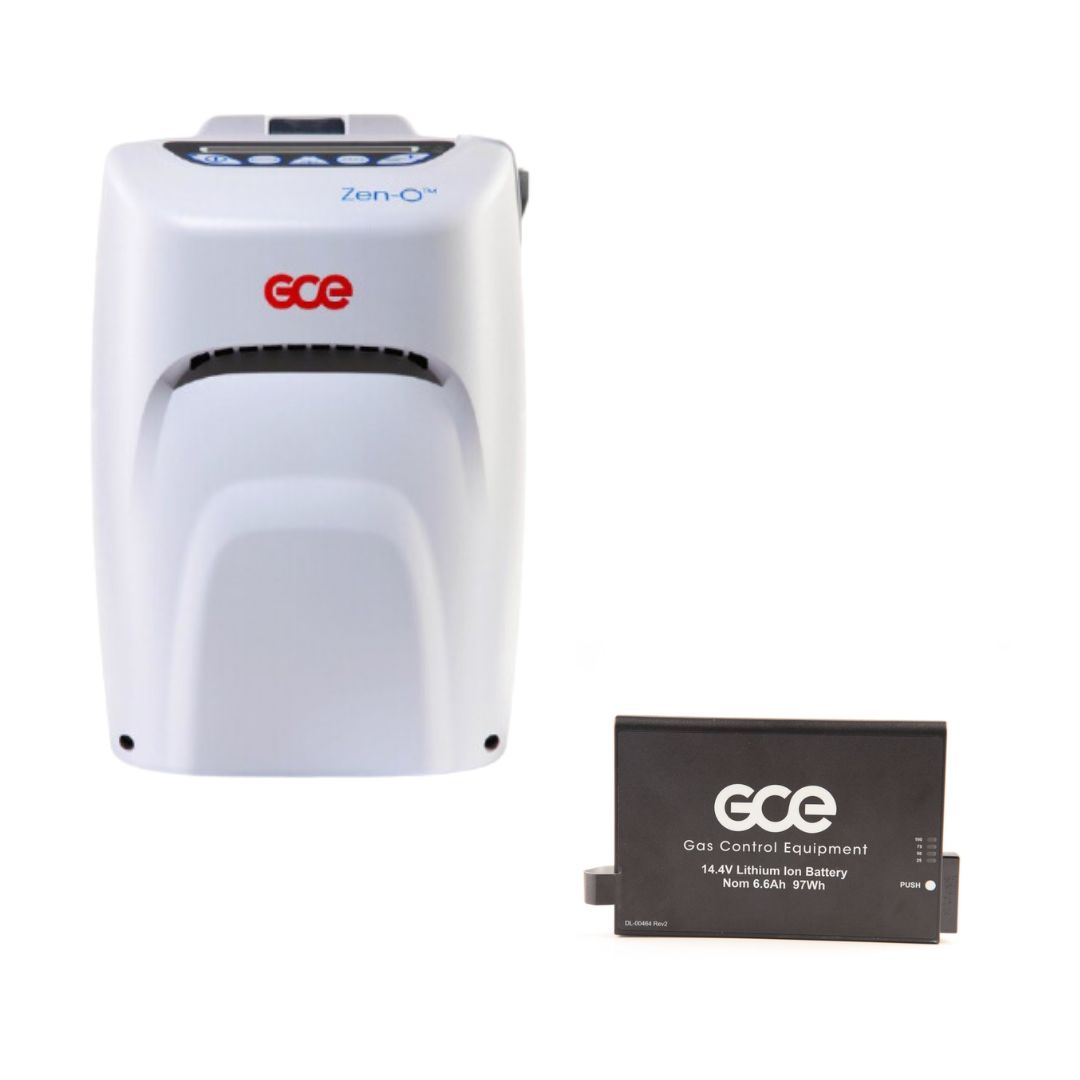

NEW GCE Zen-O™ Portable Oxygen Concentrator with 2 X 12 Cell Battery

This is A special order item lead times can vary please call for more accurate times (this is to preserve the warranty)

Call 0345 100 0084 For Prices

Vat Exempt

GCE ZENO PORTABLE OXYGEN CONCENTRATOR

The GCE Zen-O™ portable oxygen concentrator is designed to enable patients with respiratory disorders such as chronic obstructive pulmonary disease (COPD), better manage their oxygen therapy.

Weighing just 4.66 kg the Zen-O can deliver up to 2 litres per minute of oxygen in either pulse or continuous flow and is supplied with variety of accessories, including a carry bag and a pull cart for increased mobility.

Zen-O™ is designed with easy to replace sieve bed. The sieve bed can be replaced in the field using simple tools in under 5 minutes, saving time and money. Zen-O™ is produced in the UK.

Features

Dual mode

Zen-O™ portable oxygen concentrator can deliver up to 2 litres of oxygen in either pulse or continuous flow.

Easy to use

Simple to use with clear button operation and LCD panel.

UK expertise and global support

Zen-O™ portable oxygen concentrator is manufactured in the UK to high standards. Strategic partners in North America and Africa help us ensure accessories and spare parts are readily available to customers.

Field replaceable sieve bed

Zen-O’s practical design makes it easy for home oxygen providers to replace the sieve bed in under 5 minutes using simple tools.

Visual and audio alarms

Zen-O™ has various audible and visual alarms to prompt the user of a required action. Some alarms include low battery, service required, and no breath detected.

Warranty

This used Zen-O™ portable oxygen concentrator is supplied with a 2 year warranty.

Specifications

Size: 212 mm (W), 168 mm (D), 313 mm (H) 8.3" (W), 6.6" (D), 12.3" (H)
Weight: 4.66 kg (10.25 lbs) (without carry bag and cart)
Power requirements: AC adaptor: 100-240V AC (+/- 10%), 50-60 Hz in, 24V DC, 6.25A out. DC adaptor: 11.5-16V DC in, 19V, 7.9A out
Purity: 87% - 96% at all flow rates, over operating conditions
Settings: User adjustable in 0.5 increments from 1.0 to 6.0 in pulse mode and from 0.5 to 2.0 in continuous mode.
Inspiratory trigger sensitivity: -0.12 cm/H2O
Setting indicator: LCD display
Humidity range: 5% to 93% ± 2% non-condensing
Operating altitude: 0' to 9000' relative to sea level (0 km to 2.7 km), 1060 down to 700 mbar
Sound level: 42 dB(A) at setting 2 in pulse mode, 38 dB(A) at setting 2 in pulse mode
14-1 03/2007 MDS-Hi
Type of protection (electrical): Class II
Degree of protection (electrical): Type BF
Degree of protection (water):IP22 in carry bag (protection against small objects and tilted dripping water) IP20 out of carry bag (protection against small objects and no protection against water entering the concentrator)
Operating temperature:Continuous operation at temperatures between 5°C (41°F) and 40°C (104°F).
Storage temperature: Between -20°C (-4°F) and 60°C (140°F).
Alarm sound pressure range:65 to 85 dB(A)
Alarm system delays: Less than 10 seconds after detection (low oxygen alarms if oxygenis less than 82% volume fraction at specified environmental conditions)
Oxygen concentrator status indicator:High priority alarm that indicates when oxygen concentration drops below 82%

What's Included?

• Zeno Portable Oxygen Concentrator
• Battery
• Carry bag
• AC power supply
• DC power supply
• Pull Cart

	Item	Value
	Weight	Weight: 4.66 kg (10.25 lbs) (without carry bag and cart)
	Dimensions	Dimensions: 212 mm (W), 168 mm (D), 313 mm (H) 8.3
	CPAP/BIPAP suitability	CPAP Suitability; Suitable
	Mains Voltage	Mains Voltage; AC adaptor, 100-240V AC (+/- 10%), 50-60 Hz in, 24V DC, 6.25A out
	Warranty	Warranty; 3 years or 15,000 hours device warranty
	Flow Pulse	Pulse Flow; 6 Settings
	Flow Continuous	Continuous Flow; Yes up to 2LPM
	Battery Life	Battery Duration: Up to 4 battery duration on setting 2 pulse, or up to 8 hours with an additional battery .
	Battery Charge Time	Battery Recharge Time:
	Airline Approved	Airline Approval; FAA Approved
	12v DC Option	12 V DC; Lead Included, DC adaptor: 11.5-16V DC in, 19V, 7.9A out
	Decibel (Db)	Decibels: 42 dB(A) at setting 2 in pulse mode, 38 dB(A) at setting 2 in pulse mode
	o2 % Min	o2% Min; 87%
	o2 % Max	o2% Max; 96%
