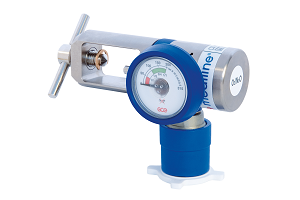

High pressure regulator for use with medical gas cylinders equipped with a medical cylinder valve.
- Regulator with pressure outlet, constantly adjusted flow or with flowmeter
- Rotating pressure gauge which allows convenient reading
- Ergonomic and streamlined design
- Easy cleaning surface
- Compact and user friendly

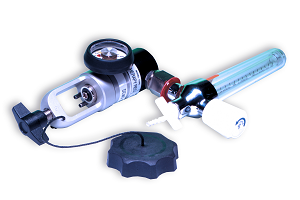

THERAPY FLOW & QUICK RELEASE CONNECTOR REGULATOR
| Art. Nr. | Description |
| 0724244 | Medireg II O2 ,G5/8 Bullnose Inlet Connection, 200 bar, BS5682 Quick Release Connector |
TECHNICAL DATA
| Gas: | O2 |
| Inlet pressure range: | up to 300 bar (depending on gas type) |
| Nominal Outlet pressure: | 4 bar |
| Body material: | Nickel-plated brass |
| Control knob: | Polyamide |
| O-rings: | EPDM |
| Filter: | Sintered bronze |
| Gauge cover: | TPE (thermoplastic elastomer) |
| Regulatory status: | Complies with Medical Devices Directive 93/42/EEC
Complies with EN ISO 10524-1
Complies with Standard EN 1789:2000
Production in accordance with EN ISO 9001 and EN ISO 13485 |
| Classification: | Class IIb |
* Flowrates expressed at 23°C and 101,3 kPa
