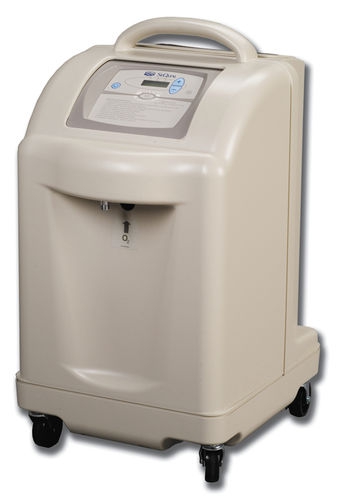

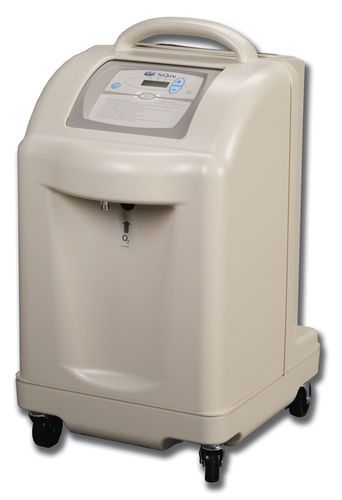

Sequal Regalia Oxygen Generator with o2 Monitor 5163 SEQ
Regalia 10 LPM oxygen concentrators offer the simplicity of the Advanced Technology Fractionator (ATF) oxygen module in a system that is quiet, lightweight, and easily transportable.
They make it a perfect fit in applications in which the concentrator may be next to the consumer or user.
RegaliaTM concentrators are ideal for applications that do not require a prescription, but can benefit from the sound reduction of plastic housing, the convenience of a handle and casters, the unique elegance of the EZ interface, and the reliability of the Advanced Technology Fractionator® (ATF) technology.
With the EZ interface, simply set the desired flow and the oxygen concentrator will make the necessary adjustments to meet that flow. If the unit is turned off, it returns to the most recent setting when the unit is next turned on.
If a downstream flow constriction like a flowmeter or torch valve constricts the flow, it is no problem for the Regalia. When the constriction is removed, the Regalia returns to the target flow.
Technical Data
Flow Rate 0.5 to 10.0 LPM (for the 10 LPM version) 0.5 to 7 LPM (for the 7 LPM version) Oxygen Concentration 1.0 to 10.0 LPM 91 3% at sea level (for the 10 LPM version) 1.0 to 7.0 LPM 91 3% at sea level (for the 7 LPM version)
Oxygen Concentration Indicator
Green Light = Normal Operation Yellow Light Flashing = Below Normal Operation (85%*) Red Light Flashing = Abnormal Operation (70%**) Oxygen Outlet Pressure Nominal 6.0 psi (41.4 kPa)1 - Maximum 11.0 psi (75.8 kPa) Electrical Power 115V~, 60Hz, 5.0A Nominal, 220-240V~, 50Hz, 2.2A Nominal Operating Temperature 50 F to 104 F (10C to 40 C) Dimensions (H x W x D) 26.5 in. (66 cm) H 14.7in. (37 cm) W 19.5 in. (50 cm) D
Audible Alarm Indicators
Power Interruption Power Surge (simulated circuit breaker) Compressor Malfunction Excessive Internal Temperature Outlet Pressure [35-36 psig (241.2-248.1 kPa) relief valve] Low Oxygen Output** <70% oxygen Back-up Alarm Power 9V Battery Filters Cabinet Air Inlet, Compressor Inlet and HEPA Device Classification IEC Class II, Type BF Applied Part, Continuous Operation Transport/Storage Requirements Temperature: -4 F (-20 C) to +140 F (+60 C) Humidity: Up to 95% Non-Condensing
Back pressure Effect on Flow Indicator
0 psig (0 kPa): 10.0 LPM 1 psig (7 kPa): 10.0 LPM Nominal 0 psig (0 kPa): 7.0 LPM 1 psig (7 kPa): 7.0 LPM Nominal
OSCI Operation*
Temperature: 50 F to 104 F (10 C to 40 C) Independent of Atmospheric Pressure. 853% and 705% oxygen concentration measurement accuracy
